Comprehensive Guide to Types of Valves with Visual References

Valves play a crucial role in various industries, from water supply systems and oil and gas pipelines to chemical processing and power generation. These mechanical devices are designed to regulate, direct, or control the flow of fluids by opening, closing, or partially obstructing passageways. The diversity of valve types is a testament to the wide range of applications and the specific requirements of each industry. Understanding the different types of valves, their unique features, and their ideal use cases is essential for engineers, maintenance professionals, and anyone involved in system design or operation. Each valve type offers distinct advantages and limitations, and the choice of valve can significantly impact efficiency, safety, and operational costs.

9 Ways to Lower and Manage Cortisol Levels
Visual identification is also important, as the external design often hints at the valve's internal mechanism and functionality. This guide explores the most common types of valves, complete with descriptions and visual references, to help readers make informed decisions and quickly recognize key valve types in real-world settings. Whether for industrial applications, residential plumbing, or specialized processes, a solid grasp of valve varieties enhances both system reliability and performance.

Valves are indispensable components in fluid handling systems, serving as control points for liquids, gases, and even slurries. Their selection is dictated by factors such as pressure, temperature, flow requirements, and the nature of the media being controlled. The design and construction of a valve determine its suitability for specific tasks, such as isolation, throttling, backflow prevention, or pressure regulation. From the simplicity of a manually operated gate valve to the precision of automated control valves, the range of options is vast. Visual identification aids in maintenance and troubleshooting, as recognizing valve types can streamline diagnostics and ensure appropriate handling. Below is an in-depth exploration of the most prevalent valve types, their working principles, advantages, disadvantages, and typical applications, accompanied by visual references for easier identification.

Major Types of Valves and Their Applications

1. Gate Valve

  • Description: Gate valves use a flat or wedge-shaped gate that slides between two seats to start or stop flow. They are primarily designed for on/off service, not for throttling.
  • Visual Reference:

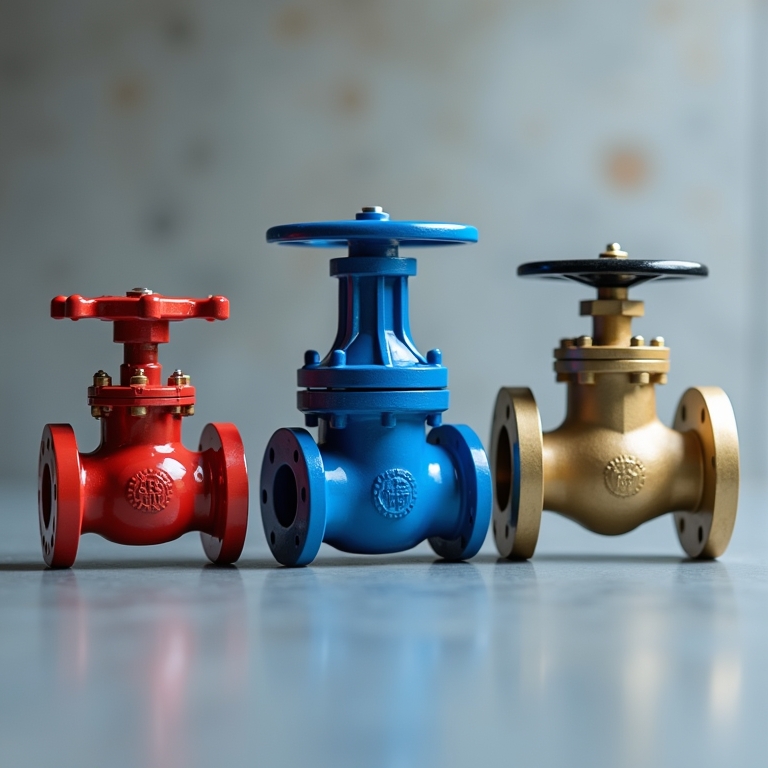

    Gate Valve
  • Common Uses: Water supply lines, oil and gas pipelines, fire protection systems.

2. Globe Valve

  • Description: Globe valves have a spherical body with a movable plug or disc that regulates flow. They are ideal for throttling and frequent operation.
  • Visual Reference:
    Globe Valve
  • Common Uses: Cooling water systems, fuel oil systems, steam lines.

3. Ball Valve

  • Description: Ball valves feature a rotating ball with a hole through its center. Turning the handle aligns the hole with the flow, allowing or blocking passage.
  • Visual Reference:
    Ball Valve
  • Common Uses: Gas lines, water distribution, chemical processing.

4. Butterfly Valve

  • Description: Butterfly valves use a rotating disc to control flow. The disc remains in the flow path, offering quick shutoff and minimal pressure drop.
  • Visual Reference:
    Butterfly Valve
  • Common Uses: HVAC systems, water treatment, food and beverage processing.

5. Check Valve

  • Description: Check valves are one-way valves that prevent backflow. They open with forward flow and close automatically with reverse flow.
  • Visual Reference:
    Check Valve
  • Common Uses: Pump discharge lines, wastewater systems, fuel systems.

6. Plug Valve

  • Description: Plug valves contain a cylindrical or conical plug with a hole. Rotating the plug aligns or blocks the flow path.
  • Visual Reference:
    Plug Valve
  • Common Uses: Oil and gas pipelines, chemical plants, water treatment.

7. Needle Valve

  • Description: Needle valves have a slender, tapered point at the end of a valve stem. They allow precise flow control, especially in small diameter piping.
  • Visual Reference:
    Needle Valve
  • Common Uses: Instrumentation, sampling lines, laboratory applications.

8. Diaphragm Valve

  • Description: Diaphragm valves use a flexible diaphragm that presses down onto a seat to control flow. They are suitable for handling corrosive or viscous fluids.
  • Visual Reference:
    Diaphragm Valve
  • Common Uses: Pharmaceutical processing, water treatment, food and beverage industries.

9. Pressure Relief Valve

  • Description: Pressure relief valves automatically release excess pressure from a system to prevent damage or failure.
  • Visual Reference:
    Pressure Relief Valve
  • Common Uses: Boilers, compressed air systems, storage tanks.

Comparison Table: Key Valve Types and Features

Valve Type Main Function Operation Best For Visual Reference
Gate Valve On/Off Manual/Actuated Isolation Gate Valve
Globe Valve Throttling Manual/Actuated Flow Regulation Globe Valve
Ball Valve On/Off Manual/Actuated Quick Shutoff Ball Valve
Butterfly Valve On/Off/Throttling Manual/Actuated Large Diameter Pipes Butterfly Valve
Check Valve Backflow Prevention Automatic One-way Flow Check Valve
Plug Valve On/Off Manual/Actuated Corrosive Media Plug Valve
Needle Valve Precise Flow Manual Small Lines Needle Valve
Diaphragm Valve On/Off/Throttling Manual/Actuated Corrosive/Viscous Media Diaphragm Valve
Pressure Relief Valve Pressure Control Automatic Safety Pressure Relief Valve

Factors to Consider When Selecting a Valve

  • Media Type: The nature of the fluid (liquid, gas, slurry) and its corrosiveness or viscosity.
  • Pressure and Temperature: Ensure the valve can withstand system conditions.
  • Operation Frequency: Some valves are better for frequent cycling, others for infrequent use.
  • Required Control: Whether precise flow regulation or simple on/off control is needed.
  • Installation Space: Some valves require more room for operation and maintenance.

Visual Identification Tips

  • Gate valves are typically taller with a rising stem and handwheel.
  • Globe valves have a round body and a stem that moves up and down.
  • Ball valves feature a lever handle and a compact body.
  • Butterfly valves have a flat disc in the center and a short handle or gear operator.
  • Check valves lack external handles and are often smaller.
  • Plug valves are compact and have a quarter-turn handle.
  • Needle valves have a fine-threaded stem and small handle.
  • Diaphragm valves often have a bonnet with a visible diaphragm actuator.
  • Pressure relief valves have a spring-loaded cap or lever for pressure adjustment.

Common Brands and Manufacturers

  • Parker Hannifin
  • Emerson (Fisher, Anderson Greenwood)
  • Crane Co.
  • Velan Inc.
  • Swagelok
  • Flowserve Corporation
  • Victaulic

Conclusion and Further Learning

The world of valves is both broad and intricate, with each type serving a distinct purpose in fluid management systems. Understanding the differences between valve types, their visual characteristics, and their operational strengths enables better system design, safer operation, and more efficient maintenance. For further information, always consult manufacturer documentation and industry standards to ensure the best match for your application.
